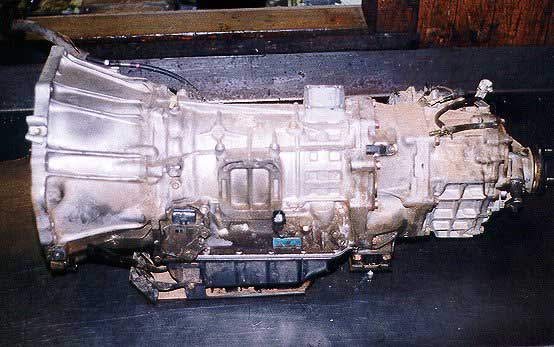

Toyota A442F Automatic Transmission factory workshop and repair manual
Toyota A442F Automatic Transmission factory workshop and repair manual
on PDF can be viewed using PDF reader like adobe , or foxit or nitro .
File size 21 Mb Searchable PDF document with bookmarks.
Covers
Operation
Component Parts Removal
Oil Pump
Overdrive Unit
Front Clutch
Rear Clutch
Second Brake
Front and Rear Planetary Gear Unit
First and Reverse Brake
Valve Body
Upper Valve Body
Lower Valve Body
Transmission Case
Parking Lock Pawl
Component Parts Installation
Service Specifications
A442F Automatic Transmission repair and workshop manual Covers FZJ80 and HDJ80 Toyota Landcruiser, Hardtop, canvas top, station wagon Covers the 4 speed electronic controlled The new A442F automatic transmission is a 4 —speed Electronic Controlled Automatic Trans- mission and has following features;
Electronic control provides the Automatic Transmission shift and lockup points most appropriate for the power characteristics of each engine and improves shift response.A high performance super flow torque converter in the Automatic Transmission is used to improve starting off, acceleration and fuel economy.For easier operation, the transmission shift lever positions have been reduced from 7 (P,R,N,D,3,2,L) to the 6 positions (P,R,N,D,2,L) used in Landcruiser vehicles, and an overdrive main switch has been provided on the shift lever.On vehicles using the 1FZ —FE engine, shift response has been greathly improved by communication between the Engine ECU and ECT ECU to momentarily reduce engine output when shifting.
